Flange Rubber Expansion Joint Duckbill Check Valve

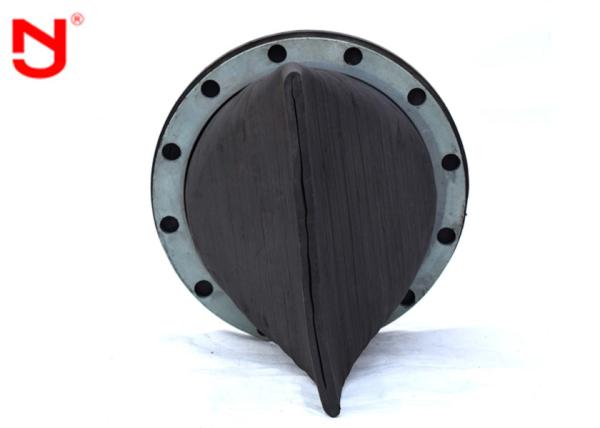

Rubber Duckbill Valves is a very reliable and cost effective check valve compare to flap
check valves and other conventional check valves.This valve is a special product ,and it is used for draining
sewage .In many foreign countries,such as Spain , America,it is
usually named as duckmouth-shaped valve .We are doing our best to
make this valve more practical and more perfect .The valve can be
matched with steel pipe ,cement pipe .At the same time ,they may be
widely used on the coast,seasands,reservoirs,and so on.In order to
dispose the sewage or to dredge the floods.
Pressure and temperature
| working pressure | PN10/PN16/PN25 |
| testing pressure | Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. |
| working temperature | -10°C to 80°C (NBR) -10°C to 120°C (EPDM) |
| suitable media | Water, Oil and gas. |
Main material list
| part | material |
| body | Chloroprene rubber, Neoprene, NBR & EPDM rubber, etc. |
| seat ring | NBR / EPDM |
| seat | metal |
Features & Benefits
•Packaged in pallet box containers or on pallets, adequately
protected for shipment.
•Each valve is individually tested.
•Various materials and services available to meet your unique
requireme
Application:

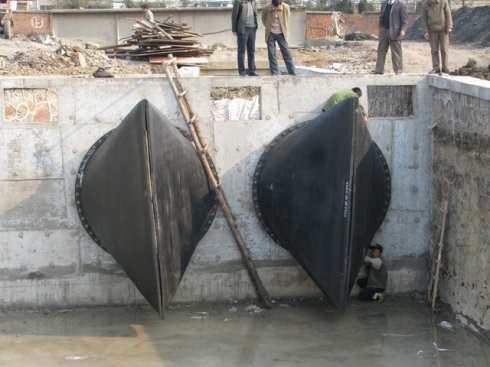

Mainly used in water systems,drainage systems,outlet of water pumps
and upgrading the pumping station and liquid aeration system.Rubber flange and valve body are as a whole, so the installation is
very convenient.The valve body is designed with a full rubber,
which will not cause siltation and stickin. It reduces the maintenance
cost, and allow the solid particles to pass smoothly.
