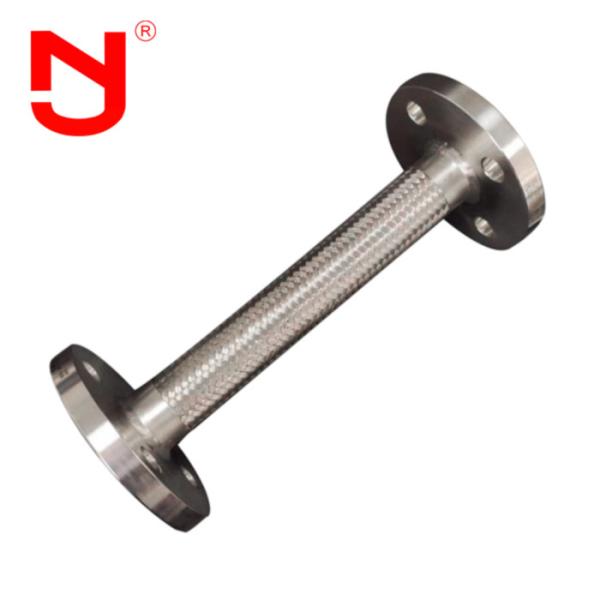

Stainless Steel Wire Braided Corrugated Metal Hose Flexible Hose
Metal
Flexible hose metal is a flexible pipe made of stainless steel material with threaded
connections designed at both ends or a certain part of it. This
hose is widely used in a number of applications due to its
excellent corrosion resistance, high temperature stability and good
mechanical properties. The stainless steel material gives the hose
excellent durability, enabling it to resist a wide range of
corrosive environments. At the same time, the flexible design of
the hose allows it to bend without losing structural integrity,
thus adapting to a variety of shapes and configurations. Threaded
connections, on the other hand, facilitate installation and ensure
a strong connection between the hose and other piping or equipment
components.
Performance of Flexible Hose Metal
The main elastic element of flexible hose metal is stainless steel bellows. Through the expansion and bending of
bellows, the flexible hose metal the pipeline in axial, transverse and angular directions. Flexible expansion joint can play the following roles:
1. The flexible hose metal absorbs the axial, transverse and
angular thermal deformation of the pipeline.
2. Flexible hose metal can absorb equipment vibration and reduce the influence of
equipment vibration on pipeline.
3. Flexible hose metal can absorb the pipeline deformation caused by earthquake and land
subsidence.
Technique Parameter of Flexible Hose Metal
Main data of Flexible Hose Metal |
| | Available Area of Bellows(c㎡) | Max Size of External Diameter(mm) | |
| | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
| | | | | | | |
Production process of Flexible Hose Metal
Do you know how is a high quality Flexible Hose Metal made?Let's see with JINGNING.
Flexible hose metal can be processed into different types according to different needs
◆ Flexible hose metal Bellow Body: Stainless Steel 304, 316L.
◆ Flexible hose metal flange Materials: Q235 carbon steel, 304, 316L stainless steel.
Jingning has more than 17 years of design experience in
manufacturing flexible expansion joint , rubber expansion joint, metal bellows joint, disassembly joint,
pipeline and other industrial pipe fittings. The flexible hose metal meets the international standards such as GB, ISO, DIN, ANSI, BS,
JIS and the special requirements of customers.
Flexible Hose Metal Advantages
1. Flexible hose metal is ex factory price
2. 17 years manufacturing experience, 5 years export experience
3. The flexible hose metal has strict quality inspection, and the quality far exceeds the
industry standard.
4. Various specifications of flexible expansion joint mold base customization and OEM
5. Free flexible hose metal samples
6. Large inventory of flexible hose metal
Flexible Hose Metal Application
Because of its flexibility, flexible hose metal can compensate the temperature difference deformation or other
deformation between equipment and pipeline, prevent vibration,
reduce the thrust of pipeline on equipment, and adapt to the uneven
settlement of oil tank foundation. The flexible hose metal can be widely used in chemical industry, oil refining, electric
power, light industry, atomic energy, metallurgy, machinery,
instrument, ship, aerospace and other departments. With the wide
application of power pipeline and heat pipeline in industry and
civil field, the requirement of flexible hose metal is higher and higher.
FAQ
Q1:Can the flexible hose metal be marked with customized logo?
A1:Yes,it can be marked with your logo. We could provide OEM&ODM
service.
Q2:What’s the face to face length of flexible hose metal?
A2:The face to face length can be L130, L152,L203... We also could
accept customized length according to your requirements.
Q3:Can you provide drawings of flexible hose metal?
A3:Yes,we could provide drawings for you.
Q4:What certificates of flexible hose metal can you provide?
A4:We could provide CE,ISO certificate.
